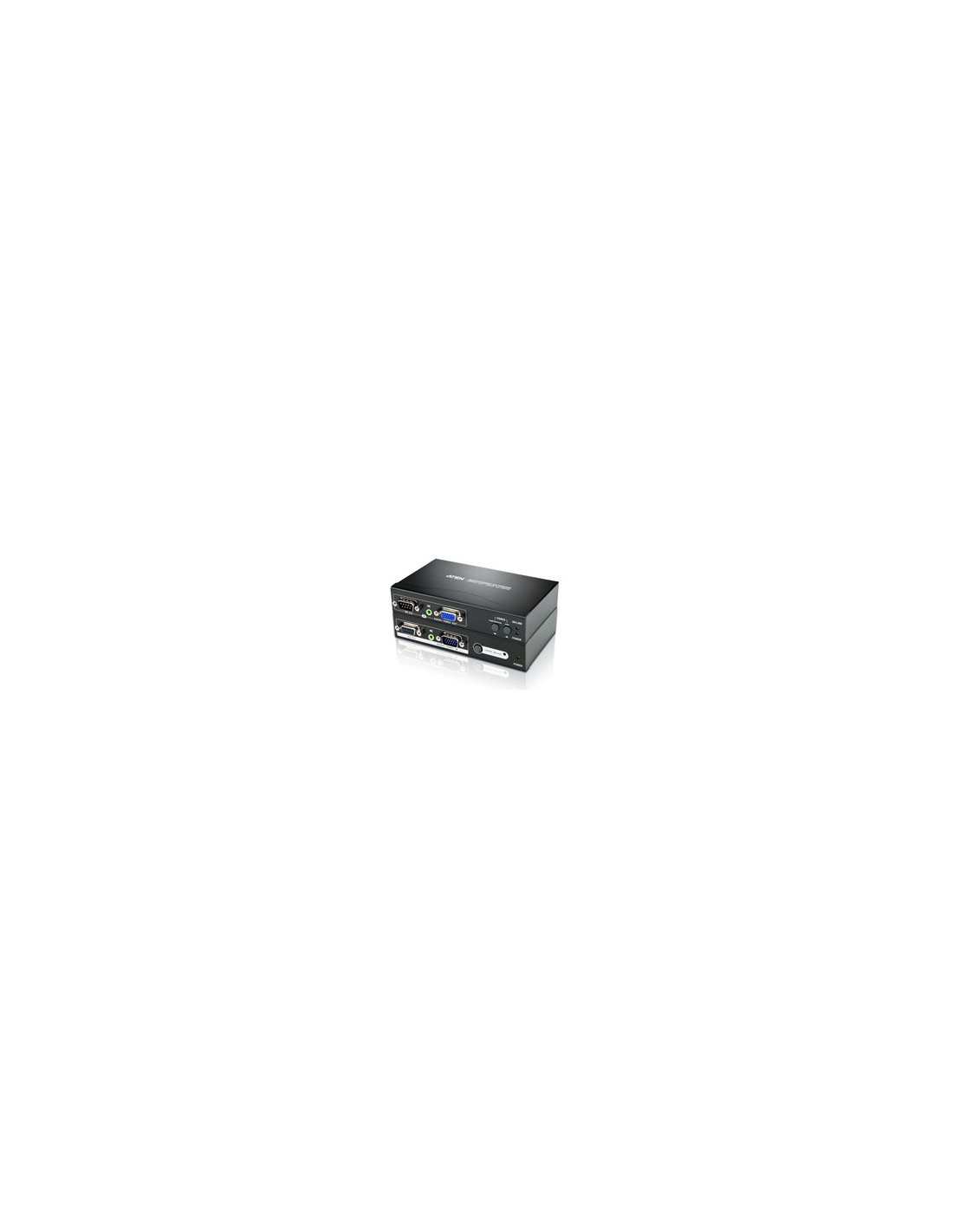

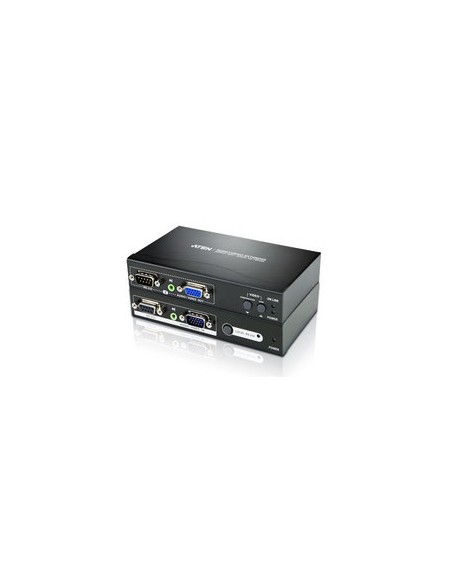

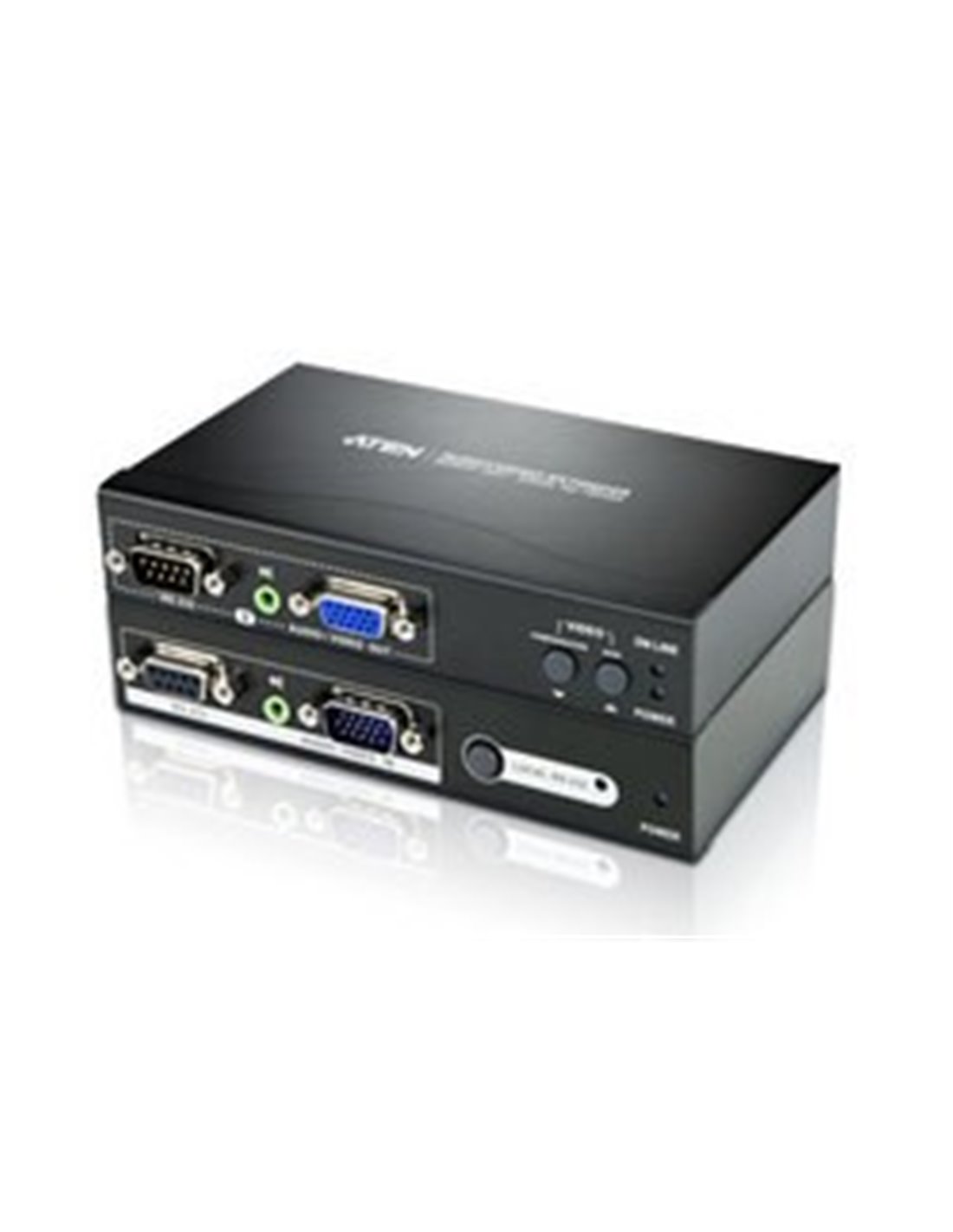

VE200
Alargador audiovisual VGA sobre Cat. 5e/6 con RS-232 (200 m)
ESTADO: NUEVO pero SIN caja original
El Audio/Video Extender VE200 permite extender la distancia entre el computador y el monitor hasta 200 metros, para resoluciones de hasta 1280x1024@60Hz. Esta compuesto por una unidad local y una unidad remota conectadas entre sí vía cable Cat5.
El VE200 es ideal para instalaciones donde las pantallas necesitan esta en lugares de acceso público pero el computador debe permanecer en un área segura. El extender es también usado para propósitos de control y seguridad, donde el pc esta en un área segura y la pantalla se ubica en un área convenientemente visible.
Otros usos y aplicaciones para el VE200 incluyen:
Finanzas: pantallas remotas con información de mercado bursátil.
Educación: pantallas que muestran las lecturas o las clases en una sala.
Negocios: pantallas remotas donde mostrar presentaciones, video conferencias, etc.
Función
VE200L
VE200R
Conectores Entrada de Video 1 x HDB-15 Macho (Azul) N/A
Salida de Video 1 x HDB-15 Hembra (Azul) 2 x HDB-15 Hembra (Azul)
Entrada de Video 1 x Mini Stereo Jack Hembra (Verde) N/A
Salida de Audio 1 x Mini Stereo Jack Hembra (Verde) 2 x Mini Stereo Jack Hembra (Verde)
RS-232
1 x DB-9 Hembra (Negra)
1 x DB-9 Macho (Negro)
2 x DB-9 Macho (Negro)
IR Jack N/A 1 x Mini Stereo Jack Hembra (Negra)
Unidad a Unidad 1 x RJ-45 Hembra
Power 1 x DC Jack
Switches Puerta RS-232 Local 1 x Boton N/A
Ajuste de Video N/A 2 x Boton
LEDs Power 1 (Naranja)
Puerta RS-232 1 (Verde) N/A
En Linea N/A 1 (Verde)
Video 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m
Distancia del Cable 200 m
Consumo de Potencia DC 5.3V, 2W DC 5.3V, 3.9W
Ambiental Temperatura de Operación 0 -50˚C
Temperatura de Almacenamiento -20 -60˚C
Humedad 0-80% RH, No condensada
Características Físicas Chasis Metal
Peso 0.34 kg 0.34 kg
Dimensiones (L x A x H) 13.90 x 8.80 x 2.86 cm 13.90 x 8.80 x 2.86 cm
