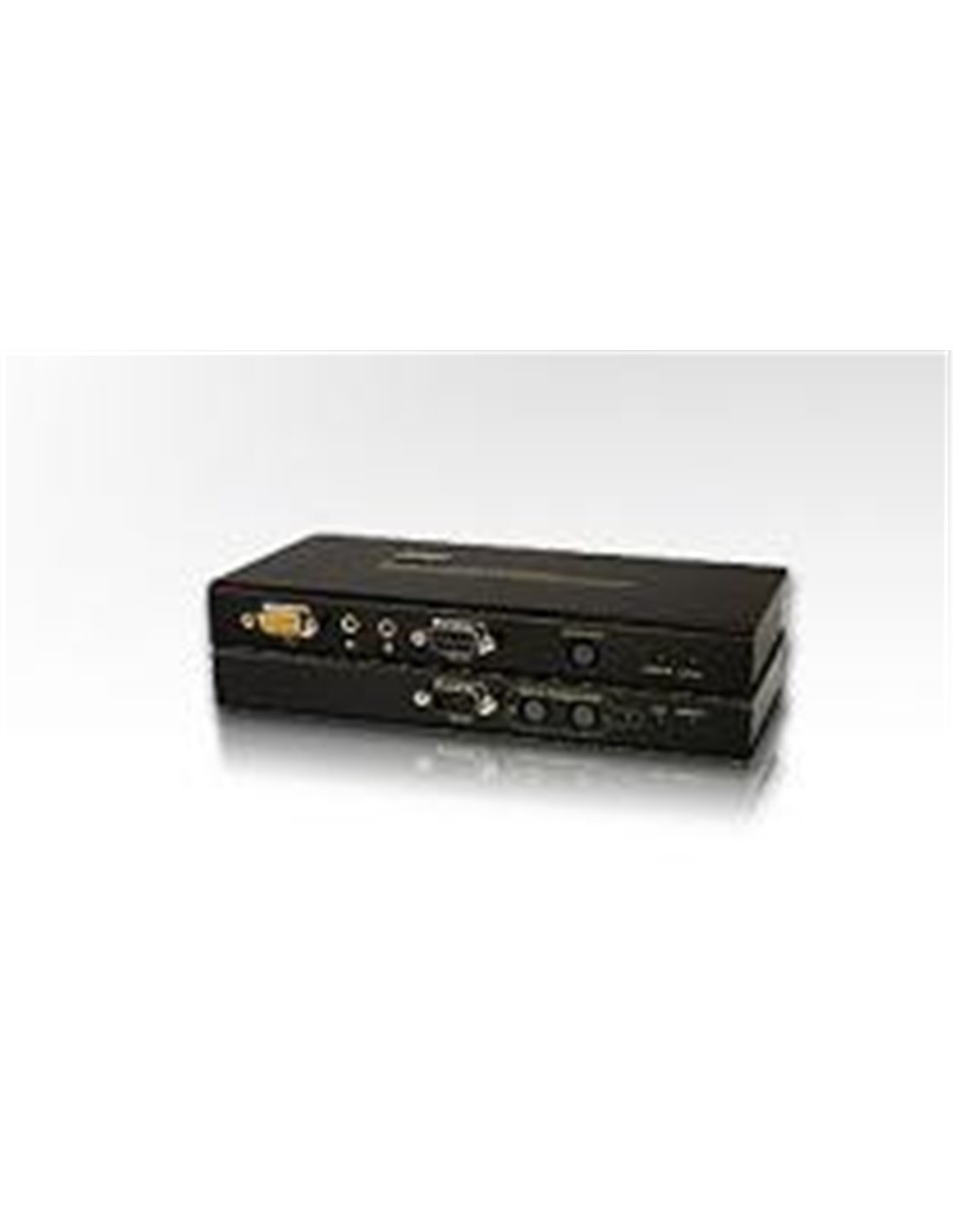

CE750A

The CE750 is a USB based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the CE750 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example.
The CE750 improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)

Local and Remote Units connect at distances up to 150 m using Cat 5e cable
Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
USB Keyboard and USB Mouse Ports
RS-232 serial ports - allows you to connect to a serial terminal for configuration (Local Unit), or serial devices such as touchscreens and barcode scanners (Remote Unit)
Supports stereo speakers and stereo microphone
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Adjustable gain control – manually adjusts signal strength to compensate for distance
High resolution video – up to 1600 x 1200 @ 60 Hz (150 m); 1280 x 1024 @60 Hz (200 m)
Supports VGA, SVGA, SXGA (1280 x 1024) and UXGA (1600 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
Hot pluggable
Rack mountable
Easy to install – no software required – connecting cables to the devices is all it takes
Multiplatform support - Windows 2000/XP/Vista, Linux, FreeBSD

Connectors
Console Ports
Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female (Green)
MIC 1 x Mini Stereo Jack Female (Pink)
RS-232 1 x DB-9 Female (Black) CE750L
1 x DB-9 Male (Black) CE750R
Unit to Unit 1 x RJ-45 Female
Power 1 x DC Jack
KVM Ports 1 x SPHD-15 Female (Yellow) (CE750L) N/A (CE750R)

LEDs (CE750L / CE750R)
Local 1 (Green) / N/A
Remote 1 (Green) / 1 (Green)
Link N/A / 1 (Green)
Picture Compensation N/A / 1 (Orange)

Pushbuttons (CE750L/CE750R)
Operating Mode Selection 1 x Pushbutton / N/A
Picture Compensation N/A / 2 x Pushbuttons

Emulation Keyboard / Mouse USB
Video 1600 x 1200 @ 60Hz (150 m); DDC, DDC2, DDC2B
IP Rating DC 5.3V; 2.4A
Power Consumption DC5.3V/3.0W / DC5.3V/4.2W

Environment
Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing

Physical Properties
Housing Metal
Weight 0.49 kg
Dimensions (L x W x H) 20.00 x 8.00 x 2.50 cm

Contenido del Embalaje
1x USB KVM Extender (Local Unit)
1x USB KVM Extender (Remote Unit)
1x USB KVM Cable (1.8 m)
2x Power Adapters
1x Rack Mount Kit
2x Grounding Wires
1x User Manual
1x Quick Start Guide
