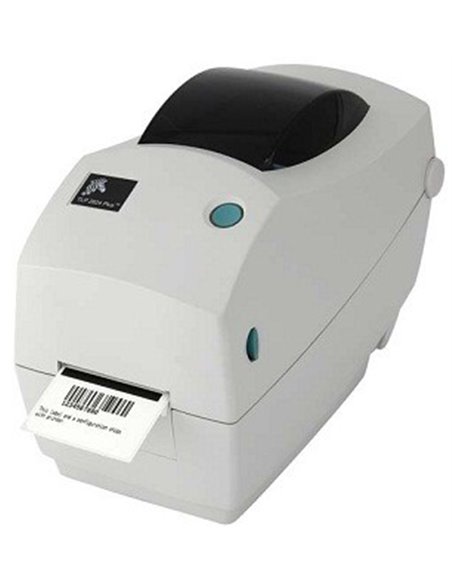

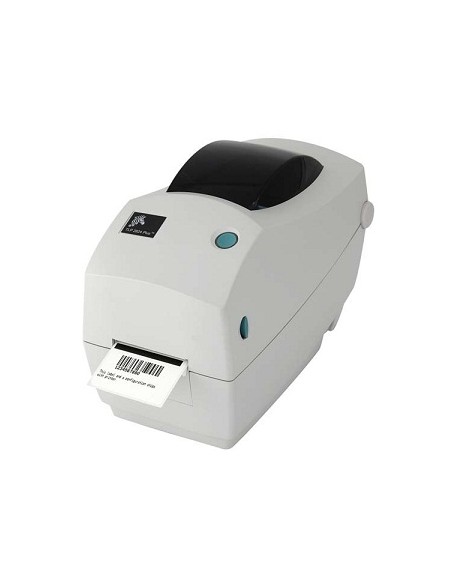

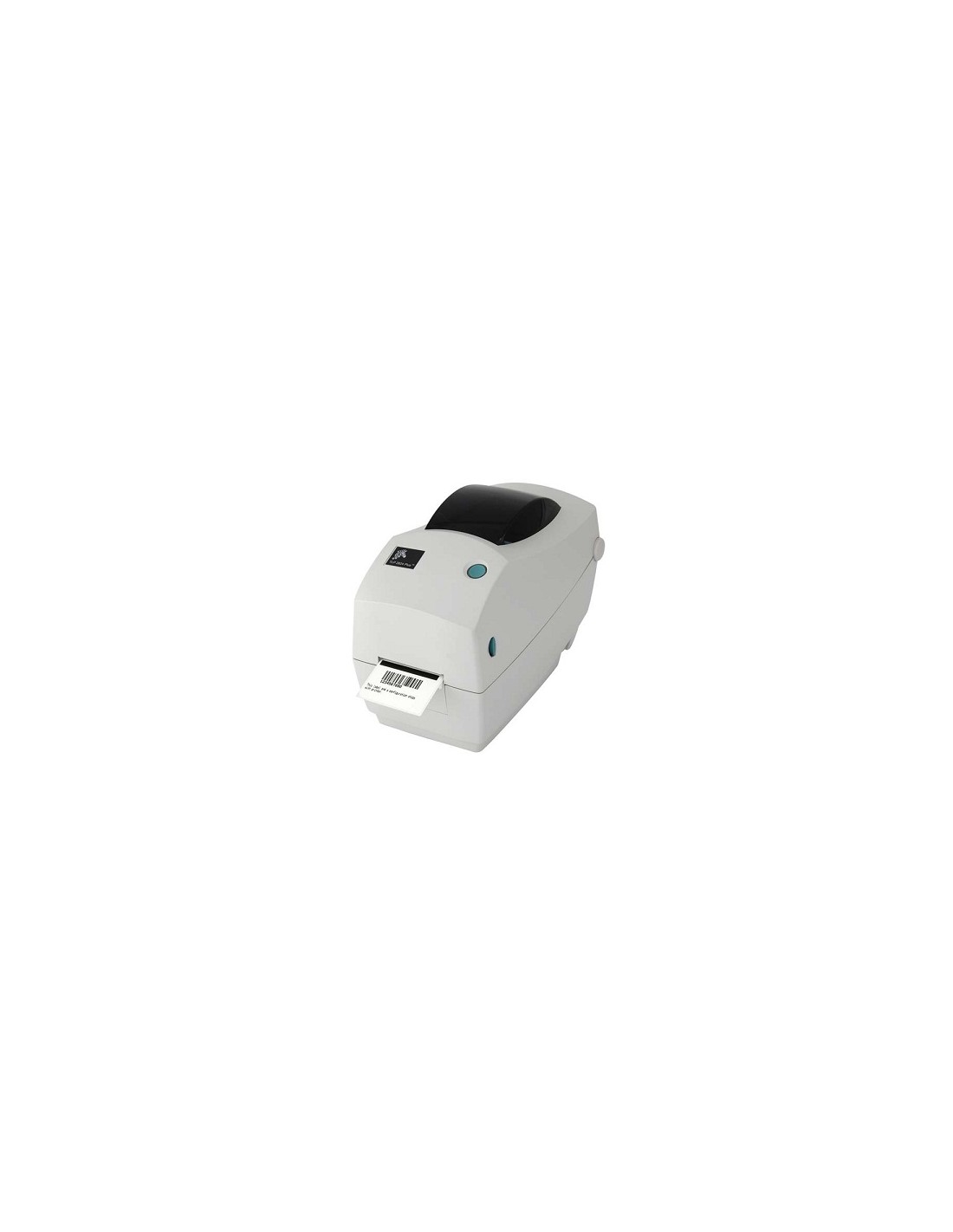

TLP-2824Plus (Cutter)

When desktop space is an issue, this enhanced line of reliable desktop label printers deliver:
Faster throughputs result in less downtime.
The compact size saves space.
Easy media loading of Zebra labels and instant reset button increases work efficiency.

Choose these desktop label printers for applications requiring direct thermal and thermal transfer printing. Expect fast throughputs from these compact thermal label printers.

Standard Features
Print methods: Direct thermal or direct thermal/thermal transfer
Odometer for printer length tracking
Unicode compliant for multi-language printing
Reset feature button
Construction: ABS double-walled casing
OpenACCESS design for easy media loading
32 bit RISC processor for high throughput
Auto calibration of media
Head-up sensor
Zebra Setup Utilities for printer setup and configuration
Standard tear-off mode
Certified Microsoft Windows drivers

Printer Specifications
Resolution 203 dpi (8 dots/mm)
Memory
8 MB SDRAM, 4 MB Flash (standard)
64 MB Flash with real-time clock for a total of 68 MB (option)

Print width 2.2" (56mm)
Print length 39" (991mm)
Print speed 4" (102mm)/sec
Media sensors Reflective
Transmissive

Media Characteristics
Maximum label and liner width 2.36" (60mm)
Minimum label and liner width 1.00" (25.4mm)
Maximum label and liner length 39" (991mm)
Maximum label and liner length (optional) 39" (991mm)
Maximum roll diameter 5" (127mm)
Core diameter 1.0" (25.4mm) and 1.5" (38mm)
Media thickness 0.003" (0.08mm) to 0.007" (0.18mm)
Media types (black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notch, notch sensing, notched, perforated, receipt, roll-fed, tag, tag stock

Ribbon Characteristics
Outside diameter 1.36" (35mm)
Standard length 244' (74m)
Ratio 1:1
Ribbon width
Recommended to be at least as wide as media
1.33" (33.8mm) to 2.24" (58mm)
ID Core 0.5" (12.7 mm)

Operating Characteristics
Operating temperature TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
Storage temperatures -40° F (-40° C) to 140° F (60° C)
Operating humidity 10-90% non-condensing
Storage humidity 5-95% non-condensing
Electrica lAuto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz

Agency approvals
FCC
VCCI
C-TICK
UL
NOM
CE
IRAM
AAMI

Physical Characteristics
Width 5.3" (135mm)
Height 7.0" (178 mm)
Depth 9.5" (241 mm)
Weight 3.5 lbs (1.6 kg)
Shipping weight 6.1 lbs (2.8 kg)
Orientation Center

Related Products
Options
64 MB Flash memory with real-time clock for a total of 68 MB
Internal 10/100 Ethernet connectivity combined with USB
Cutter for continuous paper, label liner (with no adhesives), and tag stock (no more than 0.007"/0.18mm thick)
Label dispenser forlabel peel and present with label taken sensor
Asian language support
ZBI 2.0 - field upgradeable

Communications and Interface Capabilities
USB and Serial RS-232 with auto-sensing serial port
Centronics Parallel (36 Pin)
10/100 internal Ethernet with USB (option)

Programming Languages
Core programming languages EPL, EPL-Page Mode, EPL2, ZPL II

Bar Codes/Symbologies
Linear Codabar
Code 11
Code 128
Code 39
Code 93
EAN-13
EAN-8
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Plessey
Postnet
RSS-14 (limited, truncated, stacked)
Standard 2-of-5
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
UPC-A
EAN-14
Code 128 with subsets A/B/C
UCC/EAN-128
UPC-A and UPC-E with 2 or 5 digit extensions
EAN-8 and EAN-13 with 2 or 5 digit extensions
Japanese Postnet
MSI-3
German Post Code
2-dimensional Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec

Fonts and Graphics
16 resident expandable ZPL II bitmap fonts
One resident scaleable ZPL font
5 resident expandable EPL2 fonts
