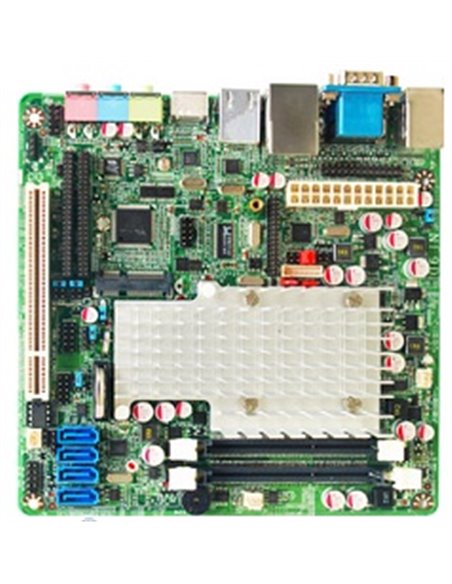

NF9D-2550

CPU INTEL® Cedar Trail-D Processor D2550 CPU (1.86GHz)
Chipset INTEL®NM10 Express chipset
Memory 2 * DDR3 800/1067MHz Single CH up to 4GB

Expansion Slots
1 * PCI slot
1 * Mini PCI-E socket

Storage 2 * Serial ATAII 3Gb/s + 2 * Serial ATAIII 6Gb/s connectors
Audio Realtek ALC662 HD Audio Code with 6-Channel

Ethernet LAN
RTL8111E 6-CH HD Audio CODEC
PCI-E Gigabit Ethernet LAN

USB Embedded 7 * USB 2.0/1.1

Special Features
Support ACPI S3
Support CPU Smart FAN & DC FAN

LVDS Onboard 24-bits Single Channel LVDS connector

Rear Panel I / O
4 * USB 2.0/1.1 ports
1 * PS/2 KB/MS connector
2 * RJ-45 port
1 * Audio port ( Line-in, MIC and Line-out )
1 * VGA port
1 * HDMI port
1 * COM port

Internal I / O
2 * USB 2.0/1.1 headers for 3 USB 2.0 ports
CPU / Chassis Fan connectors
1 * 24-pin ATX Power connector
1 * COM header (for RS-232/422/485)
1 * chassis intrusion header
1 * 2-pin SPDIF out header
1 * Parallel header
1 * GPIO header

BIOS AMI 16MB DIP-SPI Flash ROM

Functional
ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation, Financial Application

Packing
Color Box Dimension：200(W) x 200(D) x 70(H)mm
Cases Gross Weight：15.4KGS
Cases Net Weight：10.3KGS
20 PCS / Cases, Case size : 720(L) x 410(W) x 200(H)mm

Certificate CE, FCC, RoHS

Temperature
Operating within 0~60 centigrade (Suggest to use system FAN)
Storage within -20-85 centigrade

Form Factor Mini ITX Form Factor(170mmx170mm)
