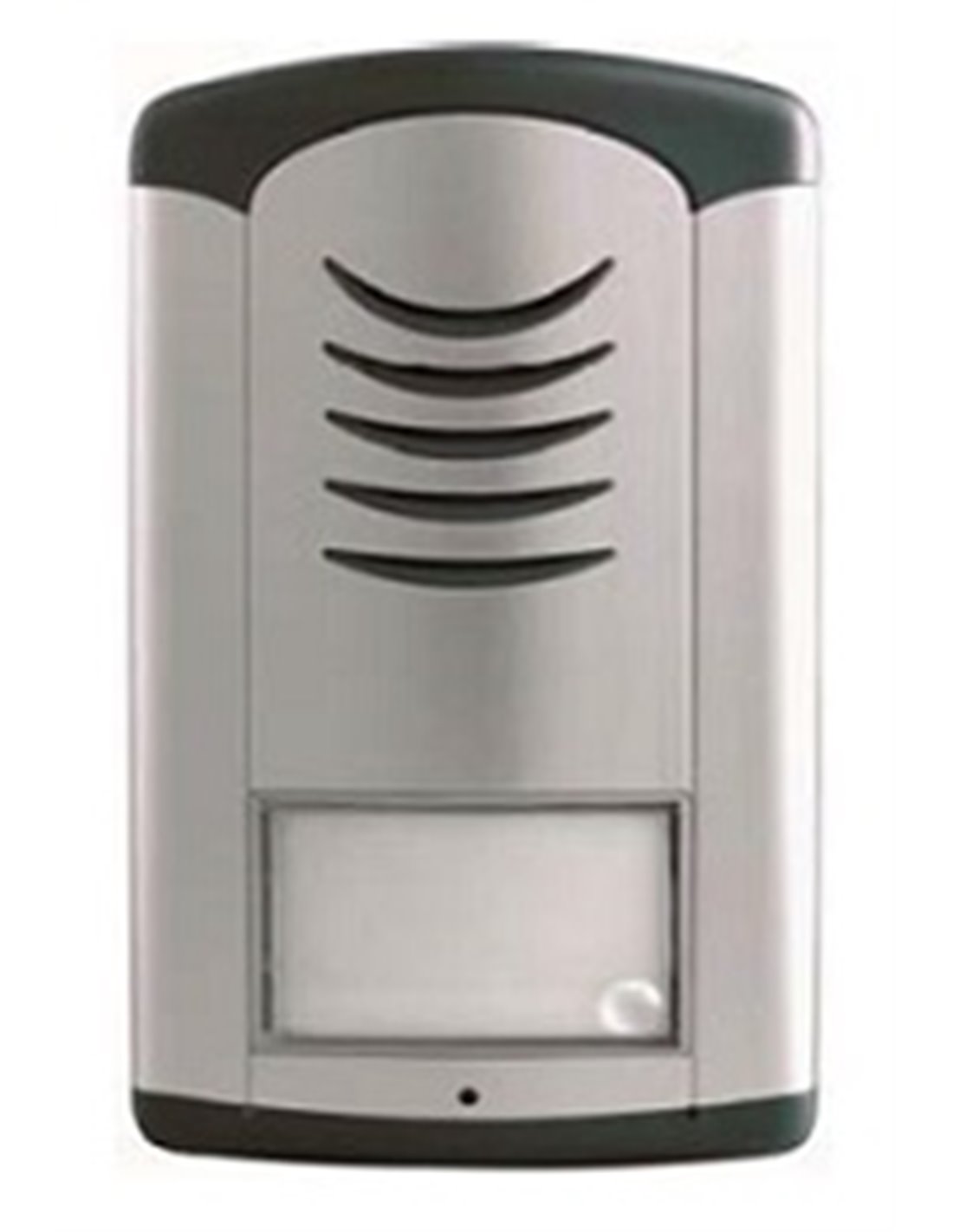

Slim GDI 01
Intercomunicador GSM de 1 botón, 2 relés
Alphatech completa su gama de intercomunicadores-portero con
comunicación GSM.
Con las mismas funcionalidades que nuestros intercomunicadores de puerta analógicos e IP. Se agregan características únicas que aumentan la efectividad.
del uso de la solución GSM:
Apertura a distancia (cancela, puerta) sólo con llamada (gratuita), se acepta solo de números autorizados (guardado en la tarjeta SIM GDI).
Registro de números de teléfono que abrieron la puerta (gate).
La lista de números, incluida la fecha y la hora, se puede enviar a número preprogramado por mensaje SMS.
La solución GSM es muy fácil de instalar: simplemente guarde el número en la tarjeta SIM y conecte la fuente de alimentación.
La batería ACU de iones de litio integrada proporciona respaldo durante 24 horas de funcionamiento (opcional).
Especificaciones |
Dimension 185mm x 99mm x 40mm Operating position various Operating condition temperature: -20 to + 50°C humidity: 10% ÷ 80% při 30°C Power supply 12 (9-24)V AC/DC, 500mA (optionaly integrated ACU 2000mAh for cca 48h of operation) Buttons 1 or 2 up casing (for each button max 7 numbers progressively dialled) Relay 2x switching contact Max. voltage 48V when I<1A Max. Current 2A when U<30V Activation time by code 1 to 99 sec Activation time by SMS 1 to 99 min Detection of start / restart. relay 1 contact switch to 7s Input: 0/5V GSM: networks 850/900/1800/1900MHz SIM 3V, 1.8V |
